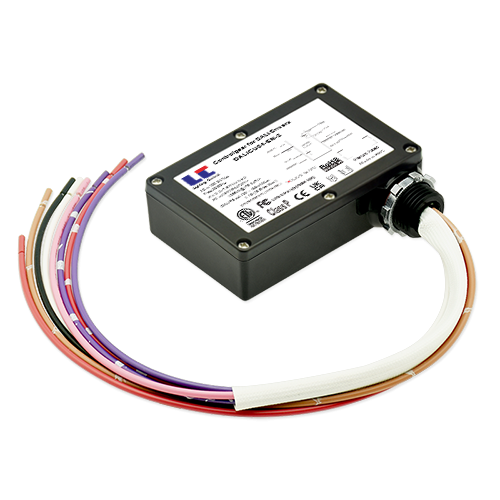

Product description
・It can measure power and internal temperature.
・0-10V output interfaces are designed to sink or source current
up to 25mA.
・The data can be read by DALI port.
・DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52.
・Selection of the desired device type via operating mode;
0x00: IEC 62386-102 standard mode.
0x80: manufacturer specific mode, DT6,
DT8 Tc, DT17 supported (default)
・Translate DALI dimming commands to 2 CHs analog 0-10V output
(CHA: Intensity, CHB: CCT).
・The AC load relay can be switched off when dimming off.
・Zero-crossing switching function for AC load relay.
・DC signal relay will short-circuit DALI interface and physically
disconnect 0-10V output interfaces in case of power loss.
・Built-in DALI PSU, 15V, 55mA (programable to 200mA)
・AC output: 8A Max., 1385VA Max.
・Over current protection when load connects to Switched, and the
failure information is recorded in NVM
・IP65 protection rating.
・For luminaries of protection class II
・DALI / 0-10V interface is compliant with SELV.
| Ordering Information | |
| Model Number | DALICU04-EN-2 |
Full Product Name | DALI Controlgear |
| Input Information | |
| Line Voltage | 100 ~ 347Vac |
Line Curren | 0.1A Max. (AC output power is not included) |
| Line Frequency | 50 / 60Hz |
Min. Mains Voltage Operational | 90Vac |
| Min. Mains Voltage Operational | 370Vac |
Inrush Current | Cold Start ≤ 70A (twidth = 50us measured at 10% Ipeak) @ 347Vac, Per NEMA 410 |
| Output Information | |
| AC Output Current | 8A/120Vac, 6A/230Vac, 5A/277Vac, 4A/347Vac |
AC Output Inrush Current | 180A, 10ms (max.) |
| AC Output OCP | 8.5A lasts more than 20s when load connects to Switched, Latch Mode, Recover after Power Cycle |
Analog 0-10V Interface Max. Current | Sourcing / Sinking ≤ 25mA |
| DALI Output Voltage Range | 14Vdc to 18.5Vdc |
| DALI Open Circuit Voltage | 18.5Vdc Max. |
| DALI Max. Output Voltage | 18.5Vdc |
| DALI Typ. Output Voltage | 15Vdc |
| DALI Min. Output Voltage | 14Vdc |
| DALI Guaranteed Output Current | 55mA (programmable to 200mA) |
| DALI Max. Output Current | 62mA (210mA) |
DALI Max. Output Power | 1.0W (3.0W) |
| ESI AUX VCC | Rated 15Vdc (deviation 13Vdc to 17Vdc) @ 50mA |
| Protections | Short circuit protection of DA+ / DA- |
| Environment & Approbation | |
Protection Rating | IP65 |
Ambient Temp Range | -20℃ to +70℃ |
Max. Case Temperature[Tcase] | 80℃ for Maintaining Specified Life Expectancy & 85℃ for CE Safety Features |
| Operating Condition | Damp and dry |
| Safety Standards | EN61347-1, EN61347-2-1 |
| EMC Emission | Compliance to EN55015, EN61000-3-2, EN61000-3-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, surge immunity Line-Line 1KV |
| Isolation | Refer to table |
| Audible Noise | < 24dB Class A |

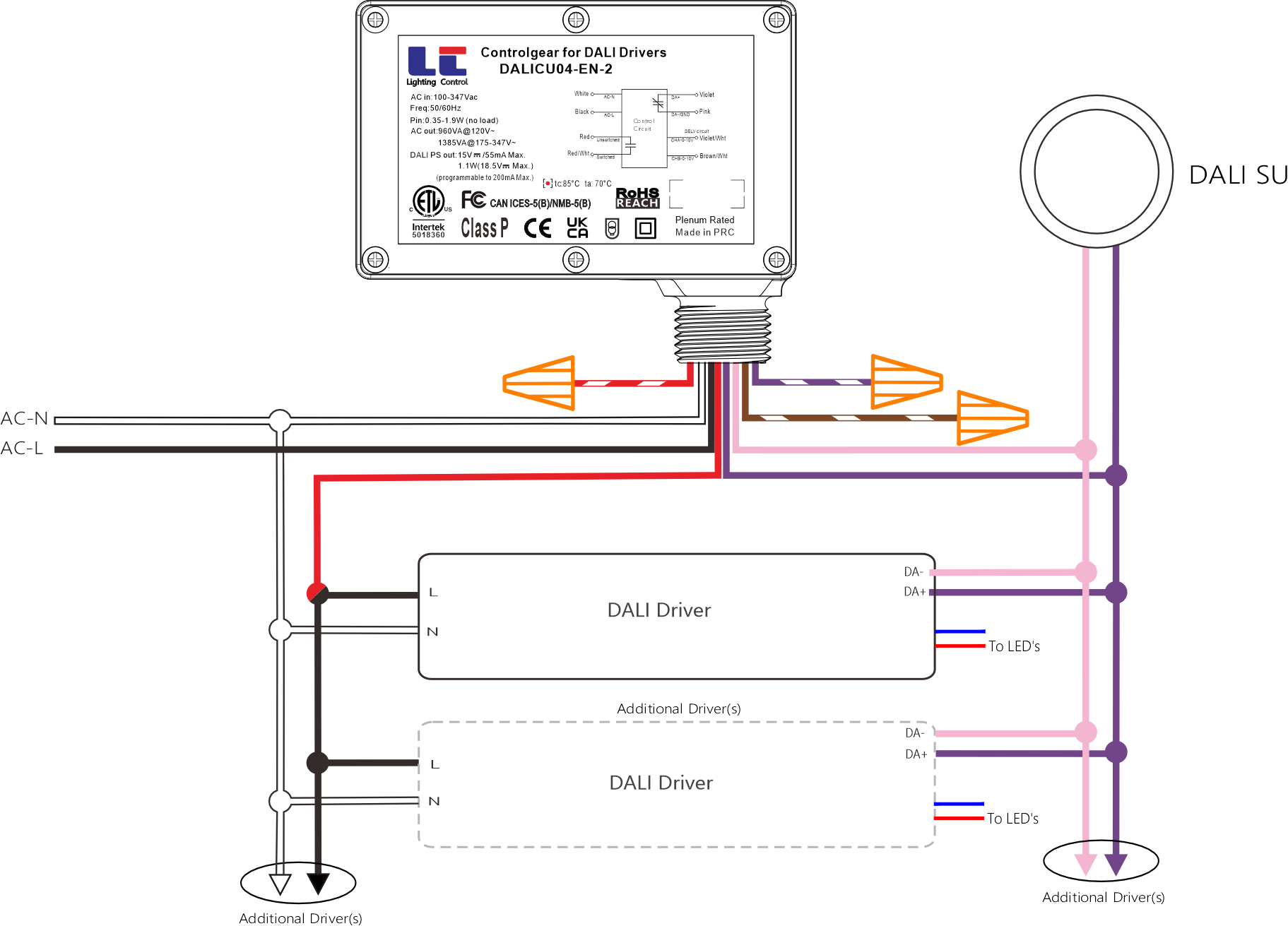

| DALI sensor to DALI driver wiring diagram |

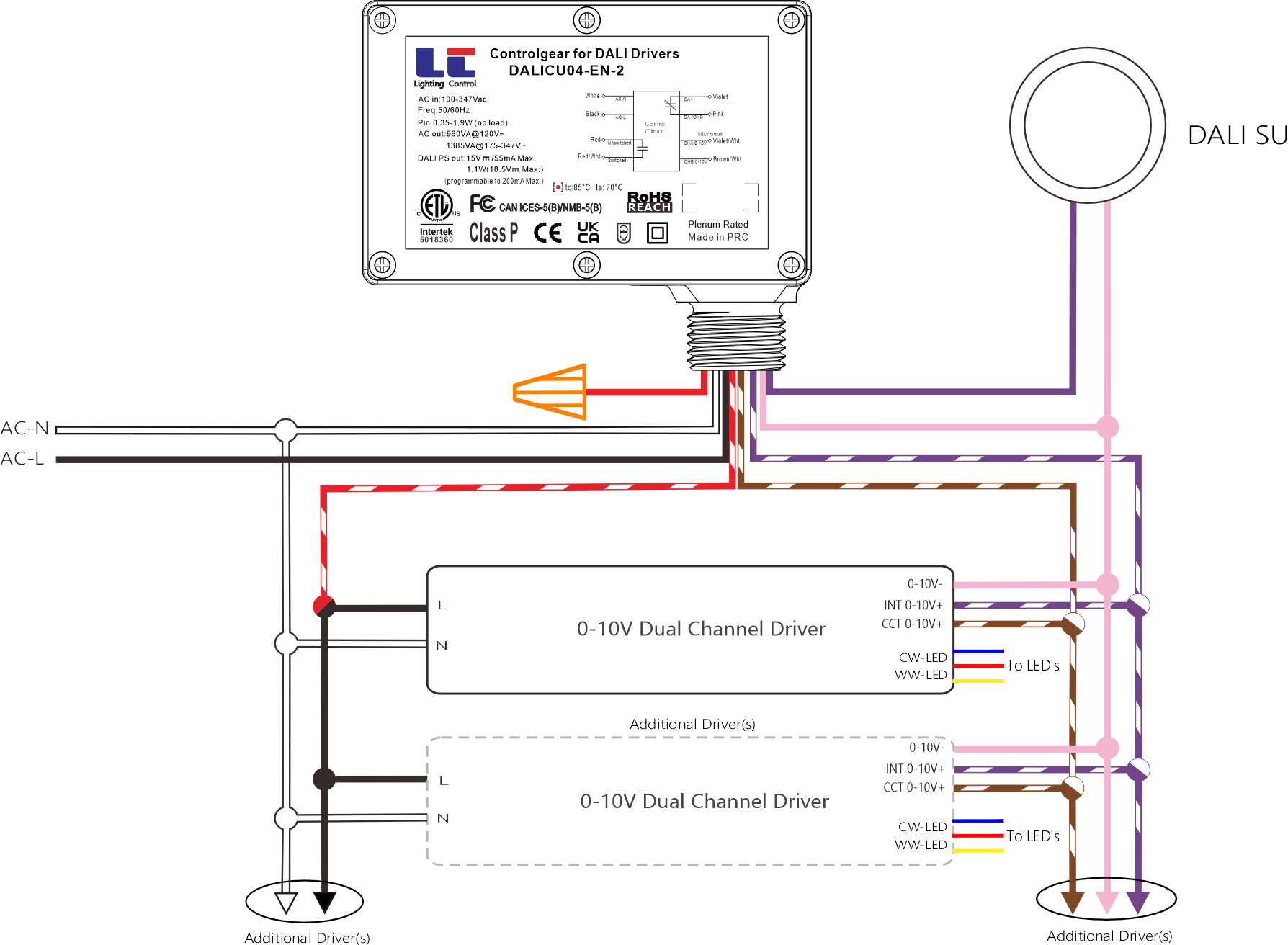

| DALI sensor to 0-10V driver wiring diagram |

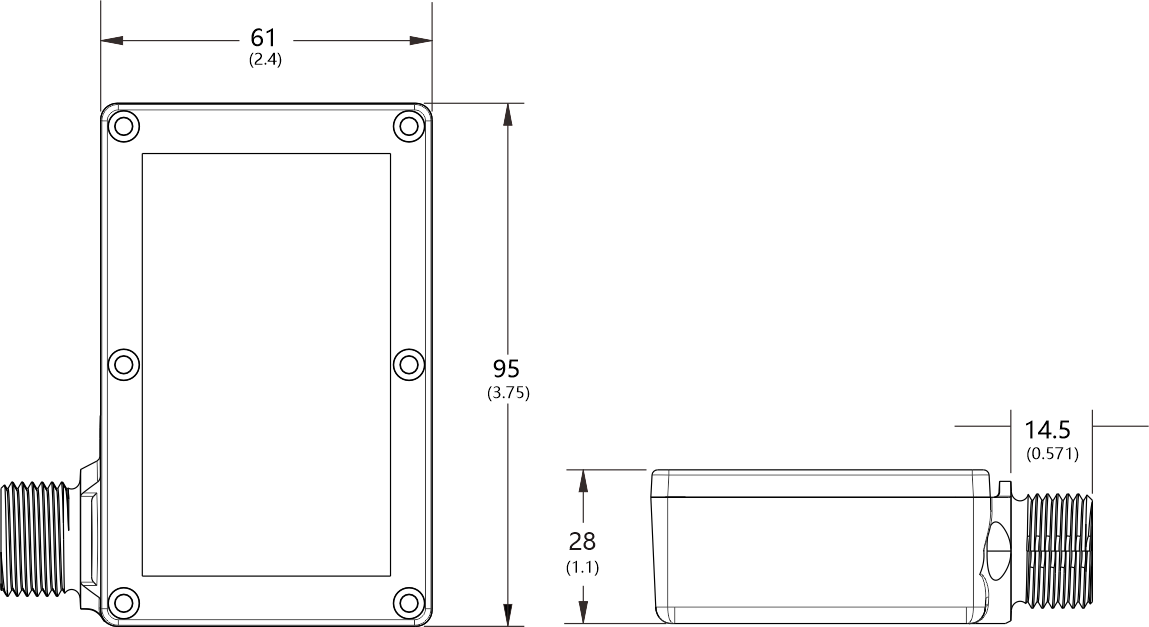

| Dimensions & Weight |
| inch | mm | ||
| Case Length | 3.75" | 95 |
|
| Case Width | 2.4" | 61 | |
| Case Height | 1.1" | 28 | |
| Weight | 0.55Ib/0.25Kg | ||
| Cable Specification |
Input wire specifications:
| Color | Cable | Length | Connector definition |
| White | 18AWG | 12"/304mm | AC Input Neutral |
| Black | 18AWG | 12"/304mm | AC Input Line |
| Red | 18AWG | 12"/304mm | AC-L out1 (Unswitched) |
| Red/Wht | 18AWG | 12"/304mm | AC-L out2 (Switched) |
| Violet | 18AWG | 12"/304mm | DA+ |
| Pink | 18AWG | 12"/304mm | DA- / GND |
| Violet/Wht | 18AWG | 12"/304mm | CHA 0-10V+ |
| Brown/Wht | 18AWG | 12"/304mm | CHB 0-10V+ |
