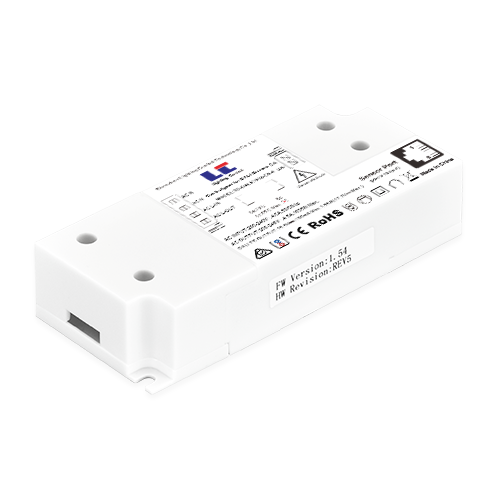

Product description
・It can measure power and internal temperature.
・Can convert 0－10V dimming signal or digital dimming commands
into DALI broadcast command.
・DALI 2-wire sensor (highest priority) and ESI sensor supported.
・The data can be read by ESI or DALI port.
・Digital command or 0-10V signal dimming method can be selected
through ESI.
・Logarithmic or linear dimming curve can be selected through DALI.
・DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52.
・Selection of the desired device type via operating mode;
0x00: IEC 62386-102 standard mode.
0x80: manufacturer specific mode, DT6
supported (default).
・Built-in DALI PSU, 15V / 55mA.
・15V / 50mA AUX Power Output.
・AC Output Current: 4.5A Max.
・IP24 protection rating.
・For luminaries of protection class II.
・DALI and ESI interfaces are both compliant with SELV.
・Communication protocol compatible with Enlighted Sensor
Interface [ESI] Definition Rev 4.8 .
| Ordering Information | |
| Model Number | TD-DALICU02-EN-1F |
Full Product Name | DALI Controlgear |
| Input Information | |
| Line Voltage | 100 ~ 240Vac |
Line Curren | 0.1A Max. (AC output power is not included) |
| Line Frequency | 50 / 60Hz |
Min. Mains Voltage Operational | 90Vac |
| Min. Mains Voltage Operational | 264Vac |
Inrush Current | Cold Start ≤ 60A (twidth = 50us measured at 10% Ipeak) @ 240Vac, Per NEMA 410 |
| Output Information | |
| AC Output Current | 4.5A [max.] |
AC Output Inrush Current | 120A/10ms [max.] |
Analog 0-10V Interface Max. Current | Sourcing / Sinking ≤ 25mA |
| DALI Output Voltage Range | 14Vdc to 18.5Vdc |
| DALI Open Circuit Voltage | 18Vdc Max. |
| DALI Max. Output Voltage | 18Vdc |
| DALI Typ. Output Voltage | 15Vdc |
| DALI Min. Output Voltage | 14Vdc |
| DALI Guaranteed Output Current | 55mA |
| DALI Max. Output Current | 62mA |
DALI Max. Output Power | 1.0W |
| Comm Port AUX VCC | Nominal 15Vdc (deviation 13Vdc to 17Vdc) @50mA |
| Protections | Short circuit protection of DA+ / DA- |
| Environment & Approbation | |
Protection Rating | IP24 |
Ambient Temp Range | -20℃ to +70℃ |
Max. Case Temperature[Tcase] | 80℃ for Maintaining Specified Life Expectancy & 85℃ for CE Safety Features |
| Operating Condition | Damp and dry |
| Safety Standards | EN61347-1, EN61347-2-11, BIS IS 15885 |
| EMC Emission | Compliance to EN55015, EN61000-3-2, EN61000-3-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, surge immunity Line-Line 1KV |
| Isolation | Refer to table |
| Audible Noise | < 24dB Class A |

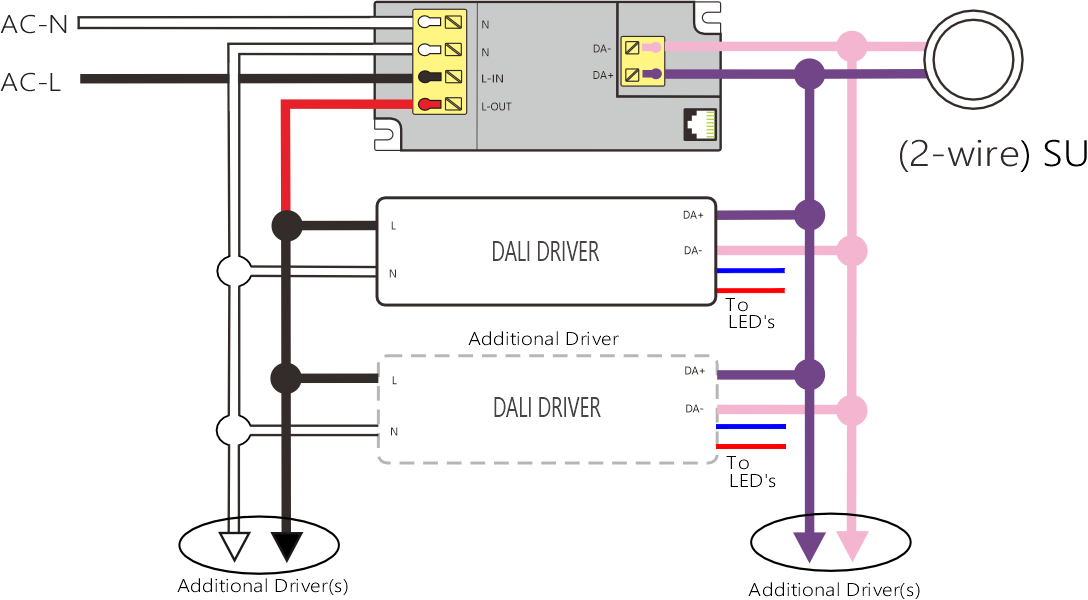

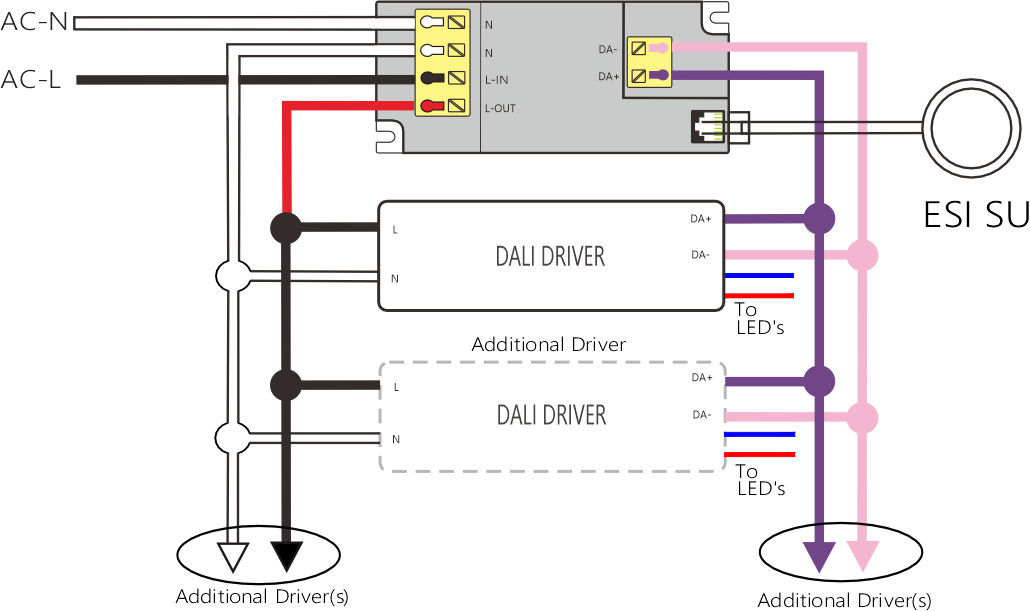

| DALI sensor to DALI driver wiring diagram |
| (2-wire) Sensor Wiring Diagram |

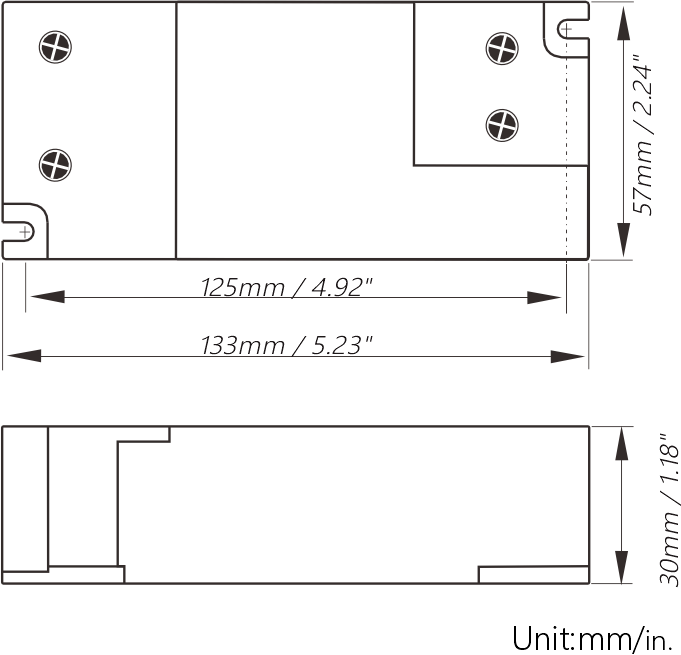

| Dimensions & Weight |
| inch | mm | ||
| Case Length | 5.23" | 133 |
|
| Case Width | 2.24" | 57 | |
| Case Height | 1.18" | 30 | |
| Mounting Length | 4.92" | 125 | |
| Overall Length | 5.23" | 133 | |
| Weight | 0.088Ib/0.040Kg | ||
| Cable Specification |
・Installin accordance with Nationa and Loca Electrical Codes.
・Output cable requirements preparation for output.
Solid conductor:
Input: 0.5…1.5mm² / 20…16 AWG
Output: 0.2…0.75 mm² / 20…18 AWG
