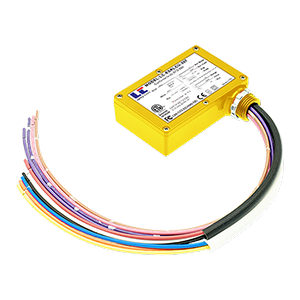

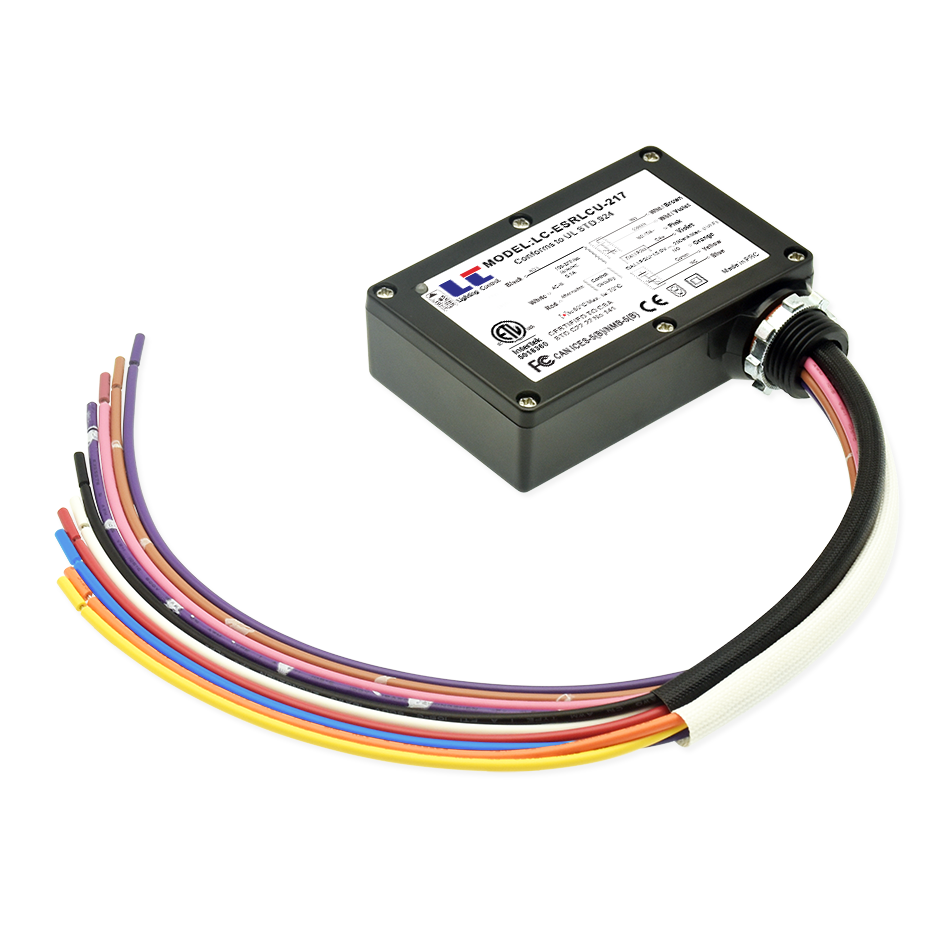

Emergency Shunt Relay (ESR)

  •   LC-ESRLCU-207

  LC-ESRLCU-207


  •   Product description
    ・Emergency lighting load control relays.
    ・Conforms To UL STD 924.
    ・Operating Voltage: 100Vac to 277Vac / 140Vdc to 390Vdc.
    ・Operating Temperature: -25℃ to +70℃.
    ・Built-in DALI PSU, 15V / 200mA .

    Emergency Load Relay Specification
    ・One (1) SPDT Continuous Duty Coil.
    ・1 Million Cycles Minimum Mechanical Lifetime.
    ・Operate Time: 15mS.
    ・Maximum Switching Load Voltage: 347Vac / 300Vdc.
    ・Maximum Switching Load current: 8A Max.
    ・Maximum Switching Load power: 1385VA Max.

    Signal Relay Specification
    ・One (1) SPDT Continuous Duty Coil.
    ・1 Million Cycles Minimum Mechanical Lifetime.
    ・Operate Time: 3mS.
    ・Maximum Switching Load Voltage: 250Vac / 30Vdc.
    ・Maximum Switching Load Current: 1A.


  • Data sheet
  • Feedback

etl.png    fcc.png     ROHS.png    LVLE      JY.png    回形.png     双重绝缘.png

CONFORMS TO UL STD.924

CERTIFIED TO CSA STD.C22.22 No.141

   Ordering Information

   Full Product Code

 LC-ESRLCU-207

   Full Product Name

 Relay CU

   Input Information

   Input Voltage

 100 ~ 277Vac / 140 ~ 390Vdc

   Input Curren

 0.1A max.

   Input Frequency

 50 / 60Hz

   Min. Mains Voltage Operational

 85Vac / 100Vdc

   Max. Mains Voltage Operational

 300Vac / 420Vdc

   Start Time ≤ 0.5S

   Inrush Current

 Cold start ≤ 45A @ 277Vac (twidth = 50us measured at 10% Ipeak) @ 347Vac, Per NEMA 410

   DALI PSU  Information

   DALI Output Voltage Range

 14Vdc to 17Vdc

   DALI Typ. Output Voltage

 15Vdc

   DALI Guaranteed Output Current

 200mA ±5%

   DALI Max. Output Power

 4W

   Load relay control current

 8A, Elect. Ballast @120Vac       4.5A, Elect. Ballast @200Vdc

 6A, Elect. Ballast @230Vac          3A, Elect. Ballast @300Vdc

 5A, Elect. Ballast @277Vac
 4A, Elect. Ballast @347Vac

   Environment & Approbation

   Protection Rating

 IP65

   Ambient Temp Range

 -20℃ to +70℃

   Max. Case Temperature[Tcase]

 85℃ (please refer to Tc point location)

   Operating Condition

 Damp and dry

   Safety Standards

 UL 924: 2016 Ed.10+R: 01 May 2018, CSA C22.2 # 141: 2015 Ed.5

 IEC 61347-1, IEC 61347-2-13

   EMC Emission

 Compliance to FCC Part 15, CAN ICES-005, IEC 55015

   EMC Immunity

 Compliance to IEC 61000-4-2,6, IEC 61547

   Audible Noise

 < 24dB Class A

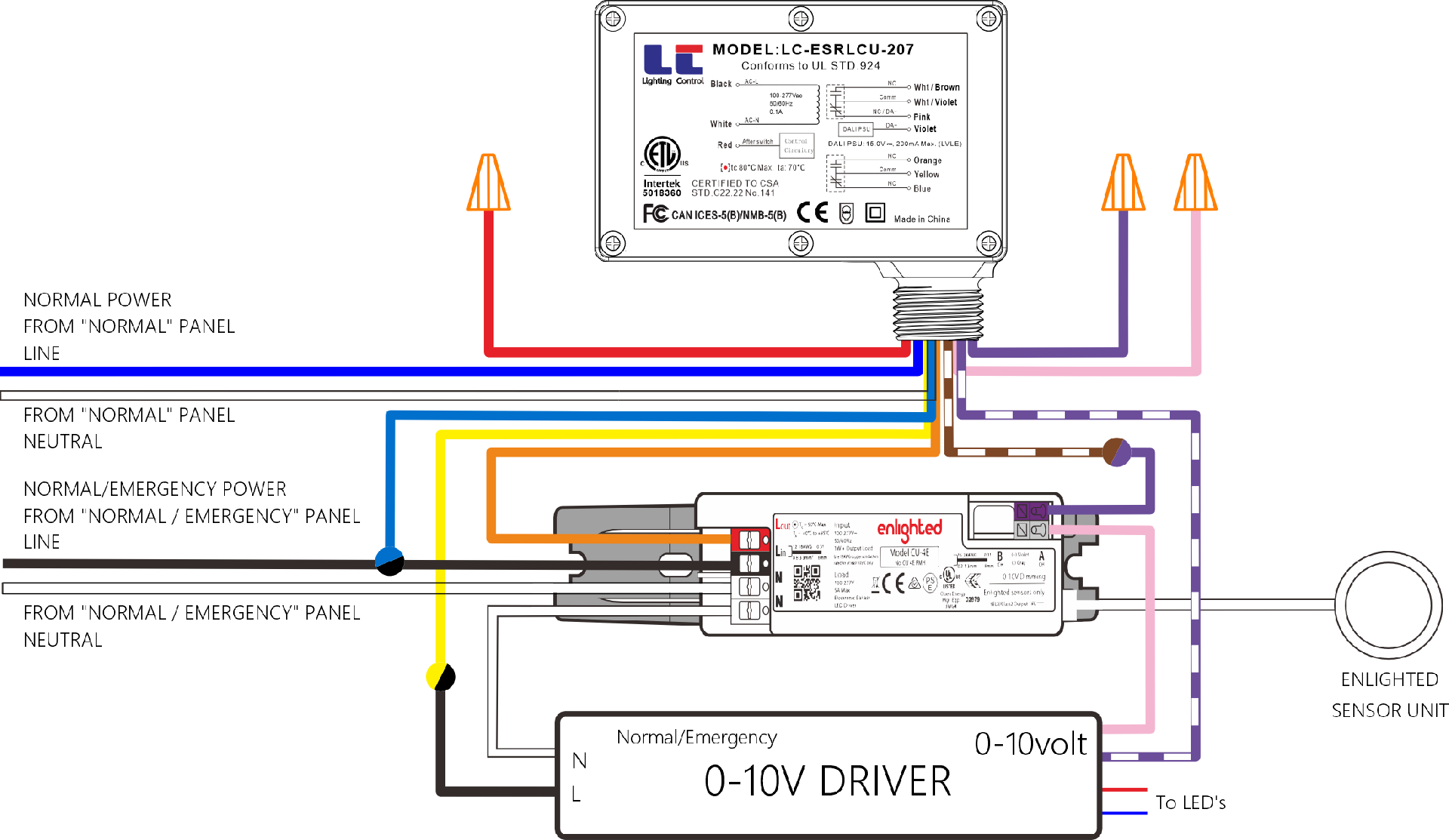

 LINE DIAGRAM-Normal / Emergency-0-10V Driver-w/ Relay CU-w/ CU (0-10V Dimming)-w/ SU-5 Sensors (0-10V Dimming)


LC-ESRLCU-207 01.png

Detailed operating instructions can be found in the data sheet

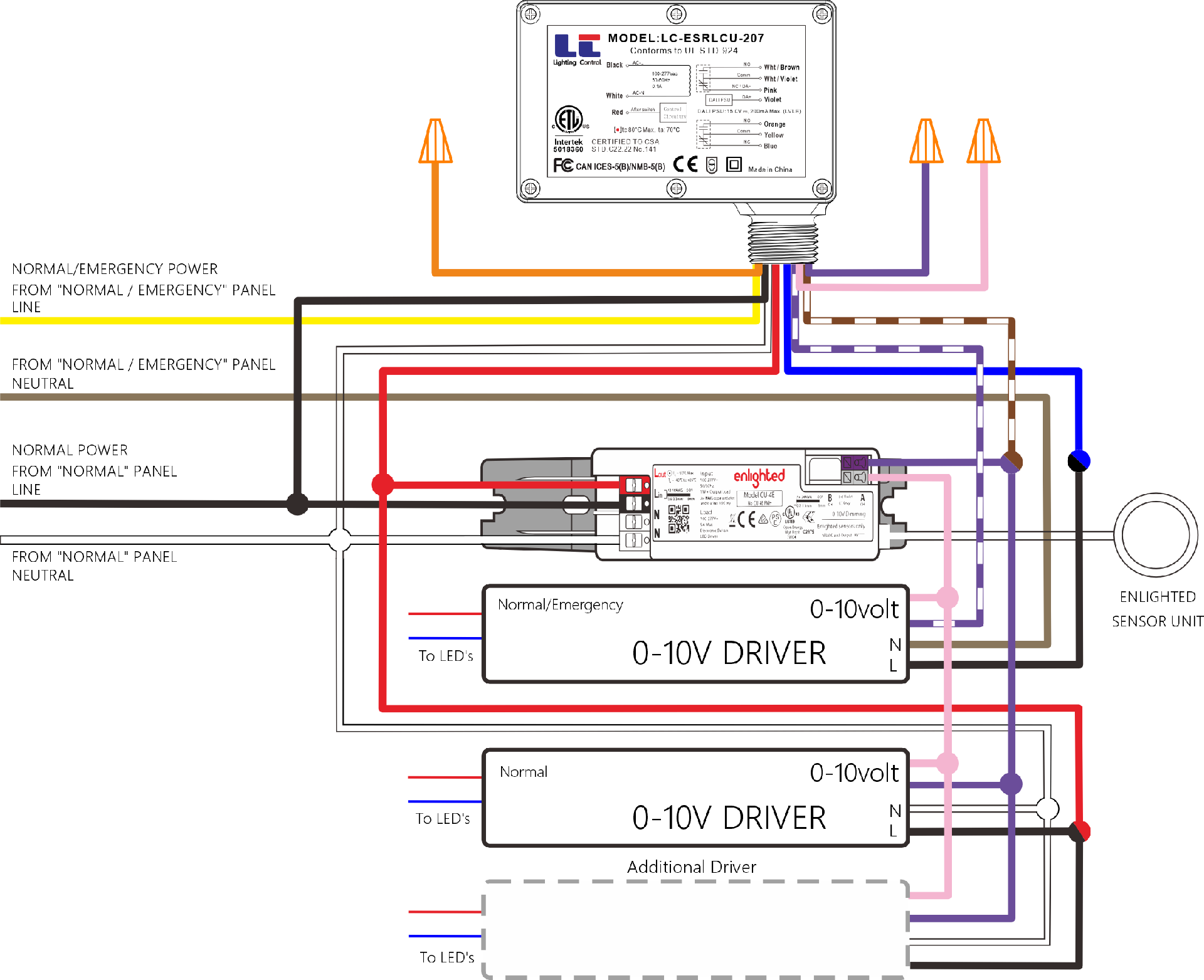

 LINE DIAGRAM-Normal / Emergency-0-10V Driver-w/ Relay CU-w/ CU (0-10V dimming)-w/ SU-5 Sensors (0-10V Dimming)


 LC-ESRLCU-207 02.png

Detailed operating instructions can be found in the data sheet



  Dimensions & Weight



  inchmm
Case Length  3.75"95.3
Case Width  2.378"60.4
Case Height  1.023"26
Weight  0.55Ib / 0.25Kg









  Wire Definition


 Color Cable Length Connector definition
 White 18AWG 12"/304mm AC Input Neutral
 Black 18AWG 12"/304mm AC Input Line
 Red 18AWG 12"/304mm After Switch
 Blue 18AWG 12"/304mm Emergency Load Relay ( N/C )
 Yellow 18AWG 12"/304mm Emergency Load Relay ( COMM )
 Orange 18AWG 12"/304mm Emergency Load Relay ( N/O )
 Brown / Wht 18AWG 12"/304mm Signal Relay ( N/O )
 Wht / Violet 18AWG 12"/304mm Signal Relay ( COMM )
 Violet 18AWG 12"/304mm DA+
 Pink 18AWG 12"/304mm DA- / Signal Relay ( N/C )
