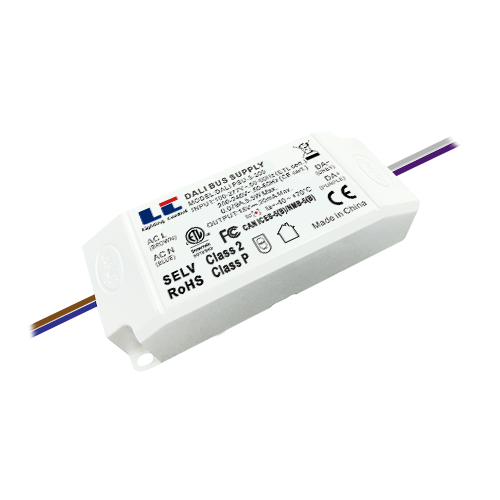

Product description
・The max. output current is fixed: 200mA / 100mA / 50mA (optional).
・Input and output are Double isolated.
・Output short circuit protection.
・ Low standby power consumption.
・IP67 protection rating.
・AC input voltage range: 100~277Vac.
・Compact form factor and thin profile (easy to fit into
lamp casing, wall switch box etc.).
・5 year Warranty.
・Operating temperature range: -40 ~ +75 °C.
SELV Class2 Class
| Ordering Information | |
| Model Number | DALI PSU-3-xxx |
Full Product Name | DALI bus power supply |
| Input Information | |
| Input Voltage | 100 ~ 277Vac |
Input Curren | 0.08A @ 100Va |
| Input Frequency | 50 / 60Hz |
Min. Mains Voltage Operational | 85Vac |
| Max. Mains Voltage Operational | 305Vac |
| Inrush Current | Cold start ≤25A (twidth=50us measured at 10% Ipeak) at 230Vac |
| Output Information | |
| Output Voltage Range, DALI | 15Vdc to 18Vdc |
| Open Circuit Voltage, DALI | 18Vdc |
| Max. Output Volttage, DALI | 18Vdc |
| Typ. Output Volttage, DALI | 15Vdc |
| Min. Output Volttage, DALI | 14Vdc |
| Guaranteed Output Current, DALI | 50mA / 100mA / 200mA |
| Max. Output Current, DALI | 55mA / 110mA / 210mA |
Max. Output Power, DALI | 5.5W |
| Output Voltage Ripple | 5% max. @ guaranteed output current |
| Protections | Short circuit protection of DA+ / DA- |
| Output Short Circuit Protection | Output short circuit behavior has no delay, retry and restart period of |
| shutdown mechanism, but short circuit proof. | |
| After 2 seconds of short circuit, the DALI PSU output current is adjusted | |
| to less than 50ma,and the normal output can be automatically restored | |
| after the short circuit condition is released. | |
| Environment & Approbation | |
Protection Rating | IP67 |
Ambient Temp Range | -40℃ to +70℃ |
Max. Case Temperature[Tcase] | 85℃ for CE & ETL Safety Features |
| Operating Condition | Damp and dry |
| Safety Standards | UL8750, CSA C22.2 No.250.13-12, UL1310, EN61347-1, EN61347-2-11 |
| EMC Emission | Compliance to FCC Part 15, CAN ICES-005, EN55015, EN61000-3-2, EN61000-3-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, Surge immunity Line-Line 1KV |
| Isolation | Refer to table |
| Audible Noise | < 24dB Class A |
| Wiring |

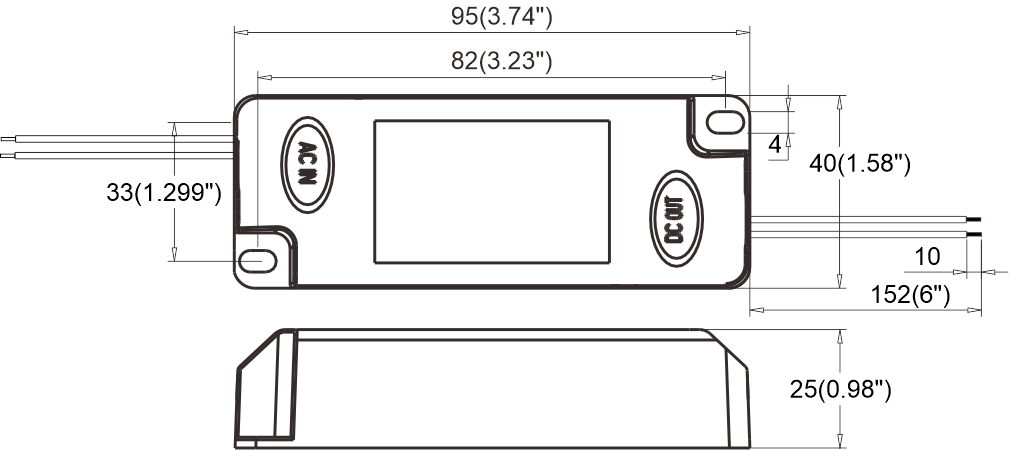

| Dimensions & Weight |
| inch | mm | ||
| Case Length | 3.74" | 9 |
|
| Case Width | 1.58" | 40 | |
| Case Height | 0.98" | 25 | |
| Mounting Length | 3.23" | 82 | |
| Mounting Width | 1,299” | 33 | |
| Weight | 0.293Ib/0.133Kg | ||
| Cable Specification |
| Live | Neutral | DALI+ | DALI- | |
| Color: | brown | blue | purple | gray |
| Cable: | 18AWG | 18AWG | 18AWG | 18AWG |
| Length: | 6"/152mm | 6"/152mm | 6"/152mm | 6"/152mm |
